ESA title

CONSAT

  • ACTIVITYFeasibility Study
  • STATUSCompleted
  • THEMATIC AREAAviation

Objectives of the service

Aircraft contrails are a significant but often overlooked contributor to climate change. Current estimates suggest their warming effect may represent 30 - 60% of aviation's direct CO₂ impact – but with low confidence level. Despite this, they remain poorly understood because most assessments rely on theoretical models rather than real-world observations.

New EU regulations are raising the stakes. From 2025, airlines had to report contrail impacts for all EU flights, and by 2028 contrail avoidance may be incentivized in the form of free allowances in the EU's carbon trading scheme.

Estuaire has developed a satellite-based service to improve how contrails and their impact are measured. Rather than relying on weather models alone, Estuaire’s product detects and tracks contrails from space using imagery from multiple weather satellites, covering over 40 million commercial flights globally. Each contrail may be matched to a specific flight, giving airlines far more accurate data on their climate impact.

This approach of combining satellite observations with flight and weather data has never been attempted operationally at a global scale. This project was a feasibility study designed to test and mature the technology and resulted in a scalable product that has been employed on an ad-hoc basis for validating the results of contrail avoidance trials.

Ultimately, Estuaire's purpose is to offer airlines a reliable, evidence-based tool to monitor and reduce their full climate footprint, positioning the company as a leader in an increasingly regulated and environmentally scrutinised industry.

Users and their needs

Estuaire's primary users are European airlines seeking to measure and reduce their climate impact beyond CO₂. Multiple European carriers have already completed contrail avoidance trials using Estuaire's services, with results verified against satellite imagery. Users are based across Europe.

User needs:

  • Accurate, evidence-based monitoring of non-CO₂ emissions (particularly contrails) to support emissions reduction

  • Verification of contrail avoidance manoeuvres through independent observational data

  • Analytical insights from avoidance trials already being conducted

  • Integration of observational data into existing workflows, via proprietary platforms, APIs, or automated data transfers



Service/ system concept

Estuaire provides airlines with contrail monitoring and avoidance solutions. Satellite images enable the verification of contrail predictions based on weather models, through automated detection and attribution to flights. This is delivered as a cloud-native SaaS solution that ingests data from multiple satellite platforms.

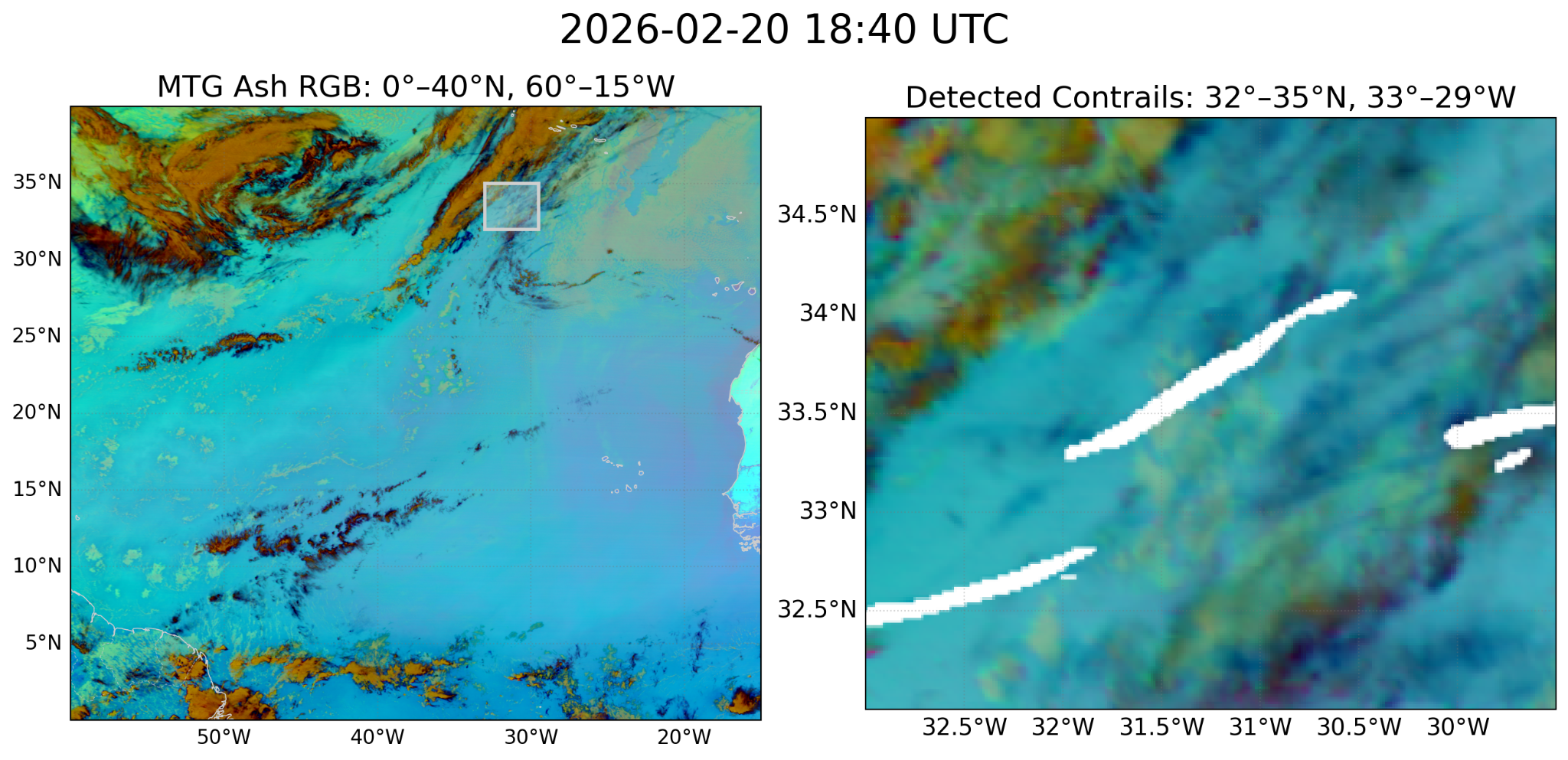

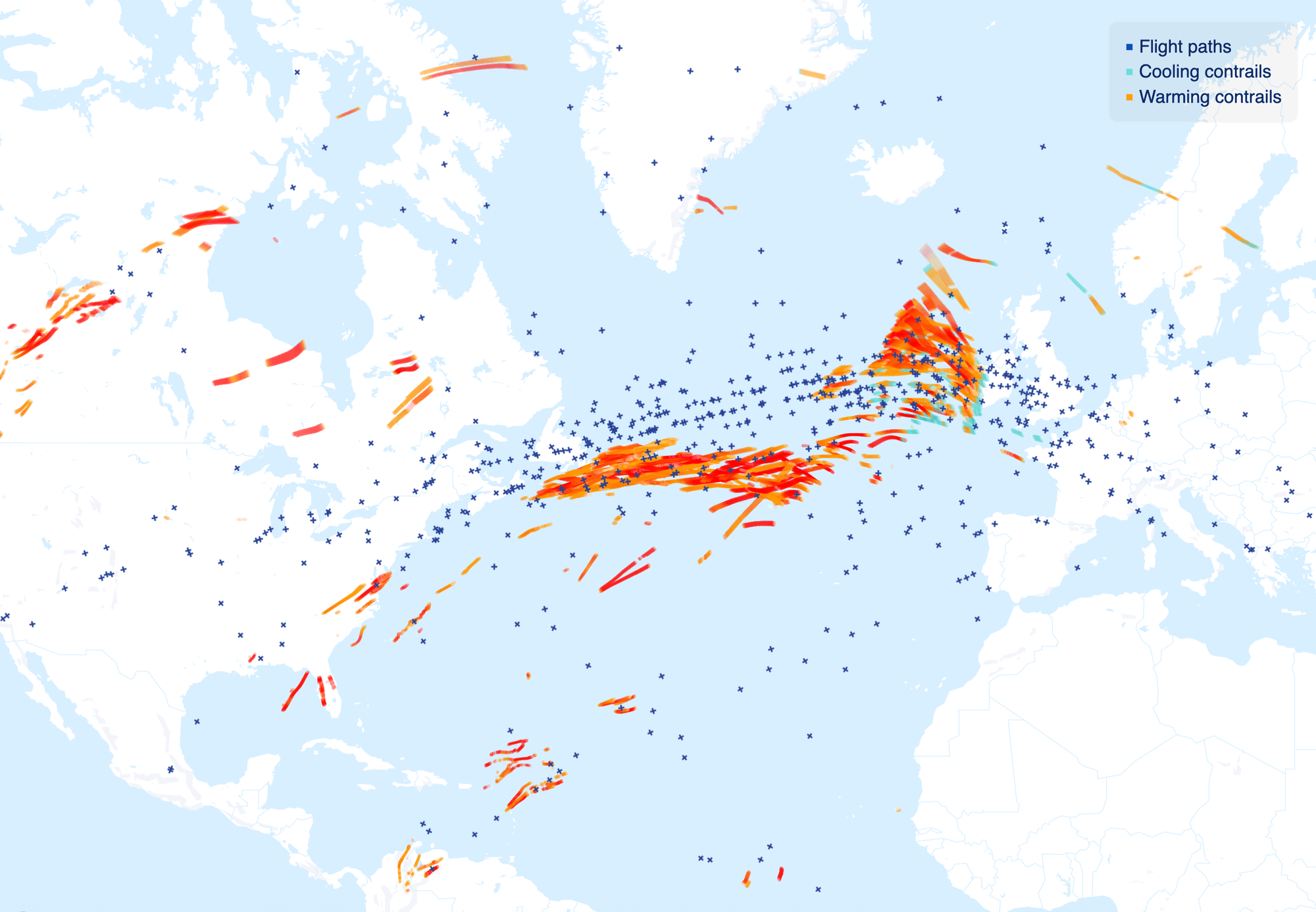

The system has two main components - contrail detection and attribution. It uses machine learning to identify contrails using satellite imagery. Data from multiple geostationary satellites is used to enable coverage over North America, the Atlantic and Europe, with a focus on the busy North Atlantic corridor. When contrails are detected, they are compared to flight tracks over the same region, in an effort to associate the contrail with a specific flight. This is the attribution stage. The result is that contrails can be monitored on a per-flight basis, supporting airlines to analyse contrail impact accurately and assesss intended reduction.

Space Added Value

The project uses geostationary imagery (1-3km resolution, 5-15 minute updates) from NASA/NOAA GOES-R series using data from the ABI imagers and the Eumetsat’s MTG using data from the FCI instrument. The integration of Japan Meteorological Agency’s Himawari AHI is the next step to enable continual global coverage

Current Status

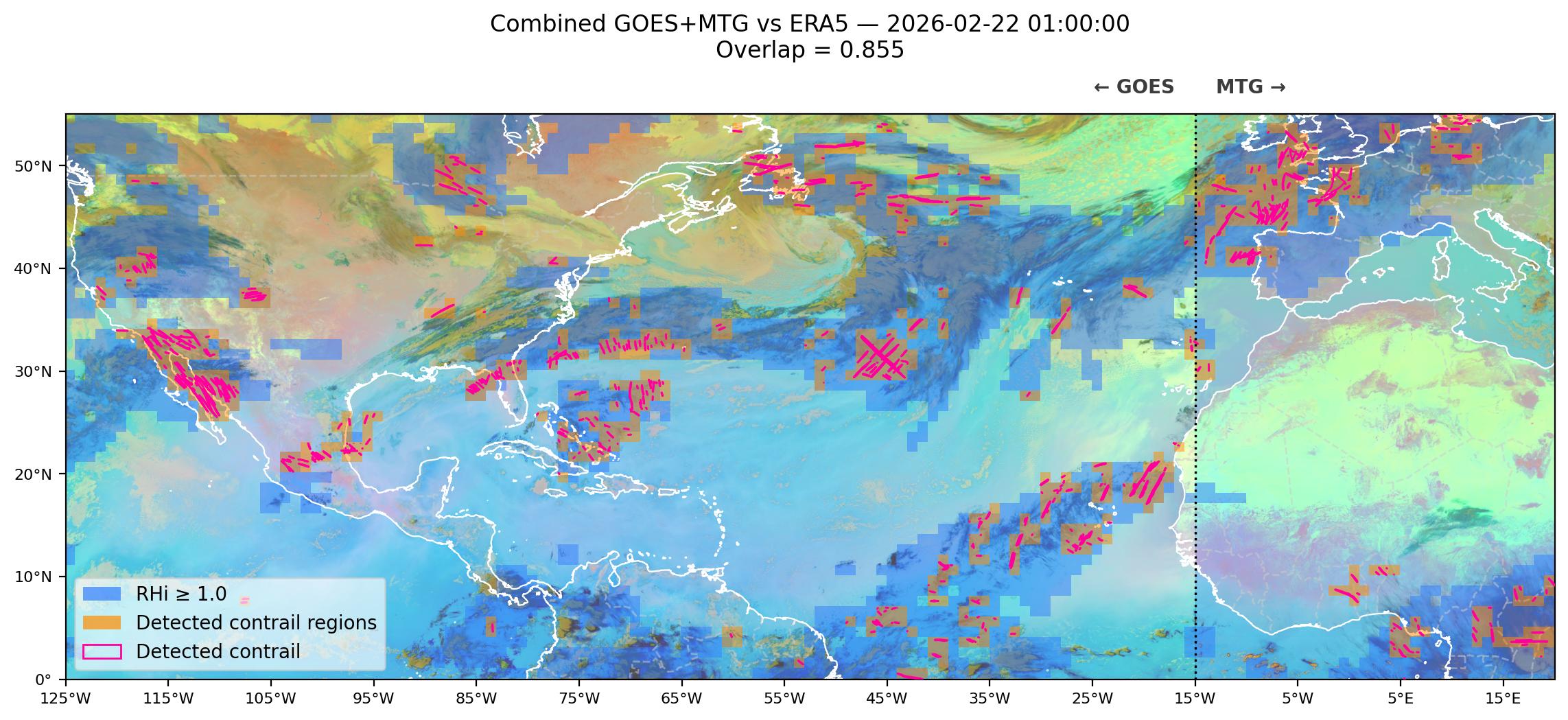

CONSAT turned contrail verification into a working service. Estuaire built an automated cloud platform that finds contrails in satellite images, follows them as they drift and attempts to identify the flight that created each one. Every match carries a confidence level. The service reached technology readiness level 6 and covers North America, the Atlantic and Europe, using images from the Geostationary Operational Environmental Satellite (GOES) series and from Meteosat Third Generation (MTG), refreshed every 5 to 15 minutes. It can process about 30,000 flights and 10,000 contrails per day.

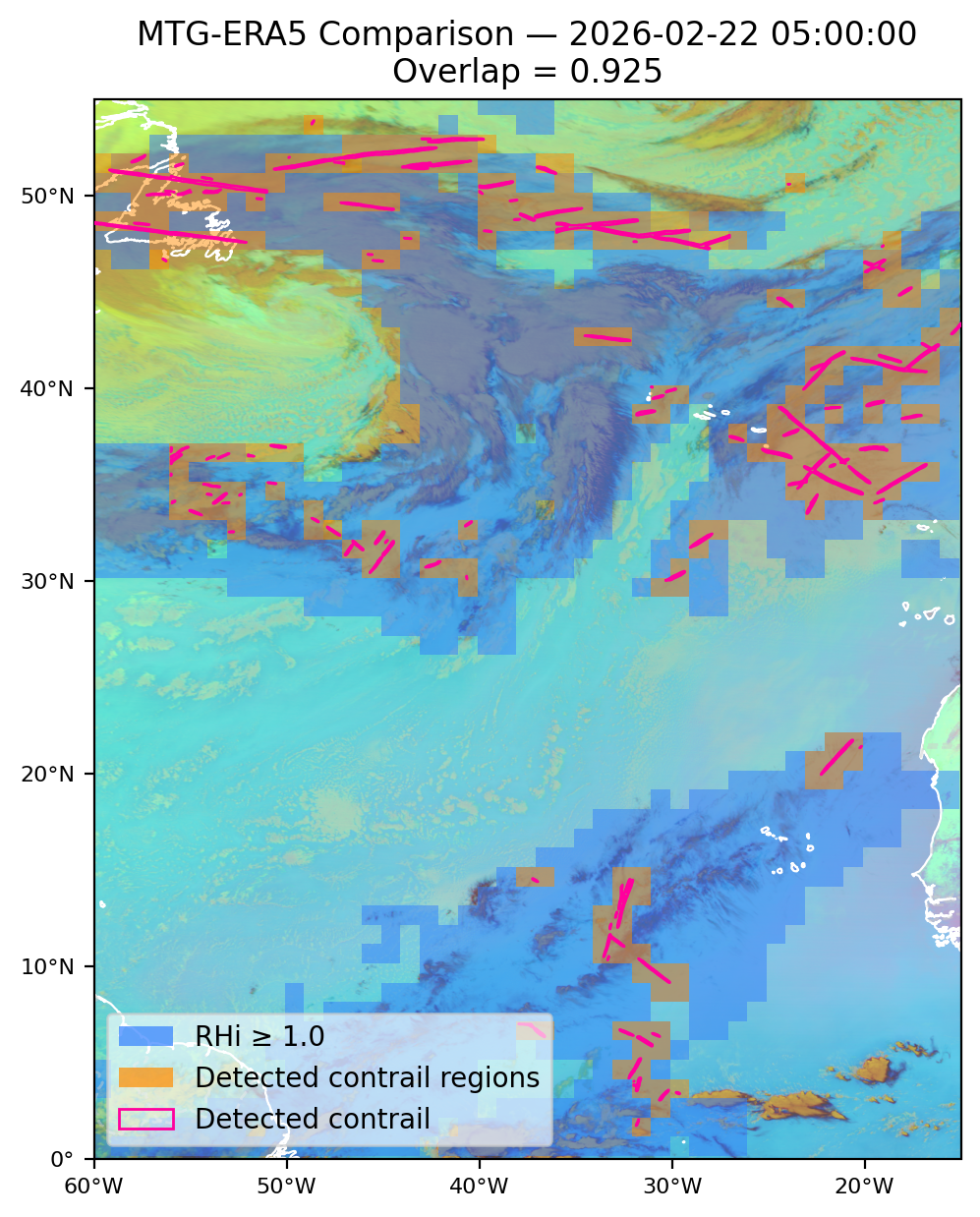

Independent checks supported the results. Between 84% and 87% of detected contrails fall inside the ice-supersaturated regions predicted by weather models. On an independent benchmark, the most confident attributions were correct in more than 99% of the cases.

What it means for airlines. Airlines get independent proof, flight by flight, of what their contrail impact is and validate the avoidance achieved, independently from weather forecasts. This backs the case for the extra fuel burnt on a reroute and prepares them for the proposed EU allowances that would reward contrail avoidance from 2028. Seeing the contrails themselves also helps dispatchers, pilots and managers support non-CO₂ action.

The service was used to verify contrail avoidance trials run with European airlines, which gave them independent evidence of the effect of their rerouting decisions. The next steps are improving detection, adding Himawari satellite imagery for global coverage and integrating the observations into Estuaire’s platform, so that airlines can monitor and reduce contrail impact routinely.



Prime Contractor(s)

Status Date

Updated: 10 November 2026
